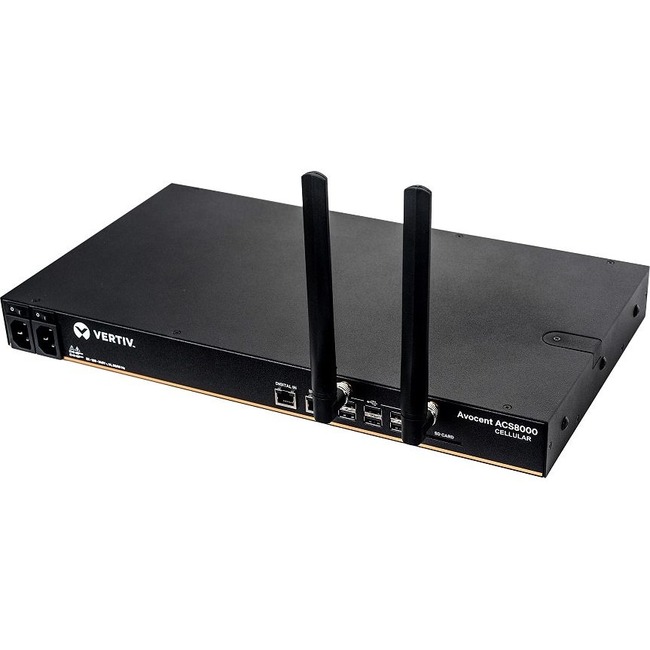

Vertiv Avocent ACS8000 Serial Console 16 port | Dual AC Power | AT&T+Verizon - Advanced Serial Console Server| Remote Console| Cellular Support| In-band and Out-of-band Connectivity| 8 to 48 rs232 terminal| Dual AC power| 2-Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Advanced Serial Console Server| Remote Console| Cellular Support| In-band and Out-of-band Connectivity| 8 to 48 rs232 terminal| Dual AC power| 2-Year Full Coverage Factory Warranty - Optional Extended Warranty Available
| Maximum Memory Supported | 16 GB |
| Number of Serial Ports | 16 |
| Additional Information | 1 x Full Size SD Card Slot
4 Digital-In Ports (Smoke Leak Pressure And Dry Contact Sensors)
Optional 48V DC Power Supply
Cellular Type: 4G/LTE (2FF/mini SIM Card Slot)
Cellular Frequency Bands (MHz):
- 4G Bands (MHz): B2(1900) B4(AWS1700) B5(850) B12(700a) B13(700c) B14(700 FirstNet)
- 3G Bands (MHz): B2(1900) B4(AWS1700) B5(850)
- AT&T - Utilizes B2 B4 B5 B12 B14
- Verizon - Utilizes B4 B13
|
| Brand Name | AVOCENT |
| Compatibility | - Vertiv Geist ServerTech APC Raritan And Eaton Rack PDUs
Vertiv UPS Systems:
|
| Country of origin | United States |
| Depth | 9.5" |
| Device type | Console Server |
| Ethernet Technology | Gigabit Ethernet |
| Height | 1.8" |
| Manufacturer | Vertiv |
| Manufacturer Part Number | ACS8016-NA-DAC-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The Vertiv Avocent ACS8000 Cellular advanced serial console server series delivers secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers as well as cloud and colocation facilities. Now with cellular capabilities the Vertiv Avocent ACS8000 Cellular provides flexibility to access devices when wired networks are down (failover) or not available at the device location. This serial console system serves as a secure management gateway and single point of entry keeping you connected to critical IT equipment even in the event of partial or total data center outages. With environmental monitoring IoT integration and remote networking abilities the Vertiv Avocent ACS8000 Cellular is ideal for edge locations enterprise data centers and hyperscale or colocation facilities. More from the Manufacturer |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Memory Technology | DDR3L SDRAM |
| Network Standard | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 8 |
| Power consumption | 28 W |
| Processor Manufacturer | ARM |
| Product Name | ACS8000 Advanced Console Server |
| Product Series | ACS 8000 |
| Product Type | Device Server |
| Standard Memory | 1000 MB |
| UPC Alternates | 636430090566 |
| USB | Yes |
| Weight (Approximate) | 7 lb |
| Width | 17.3" |
